Line Stop Housings and Hot Tap Adapters: 1″ to 42″, Class 150# to 600#
Enerteq Solutions supplies Propipe hot tap adapters for the PTM-1000, PTM-3000 and PTM-5000 hot tapping machines, and line stop housings that hold the line stop head and connect to the slim valves and hydraulic actuators.

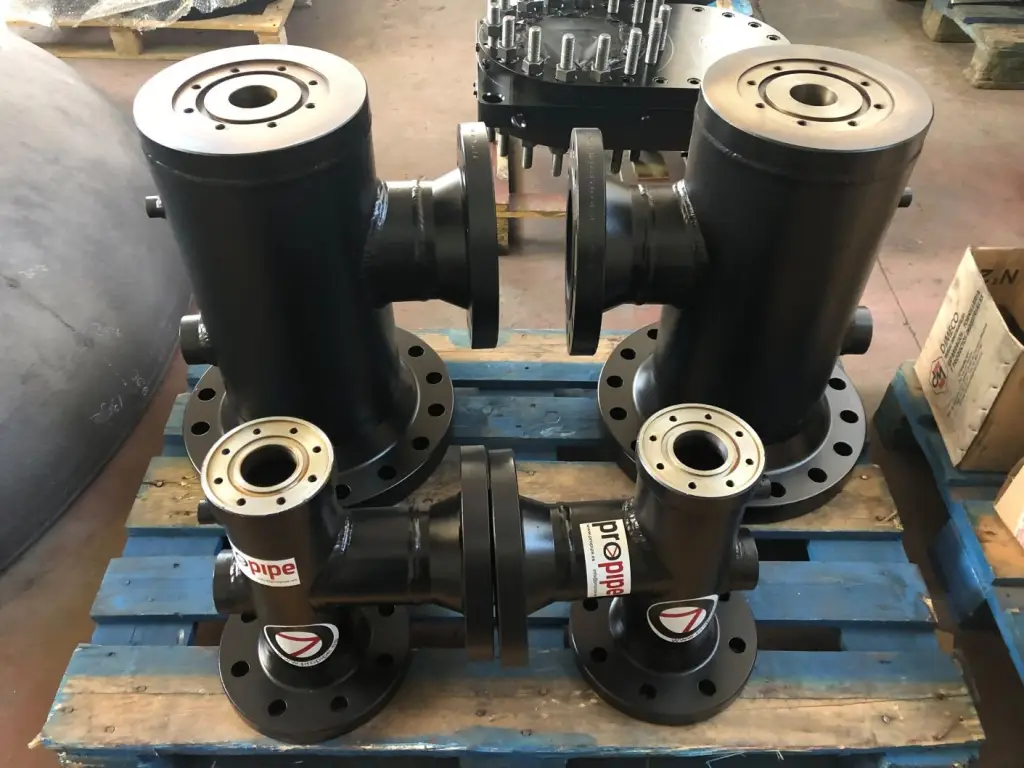

Line Stop Housings
Line stop housings are adapters that hold the line stop head inside. They are connected to the slim valves and hydraulic actuators. Sizes 4″ to 36″ in Class 150#, 300# and 600#.

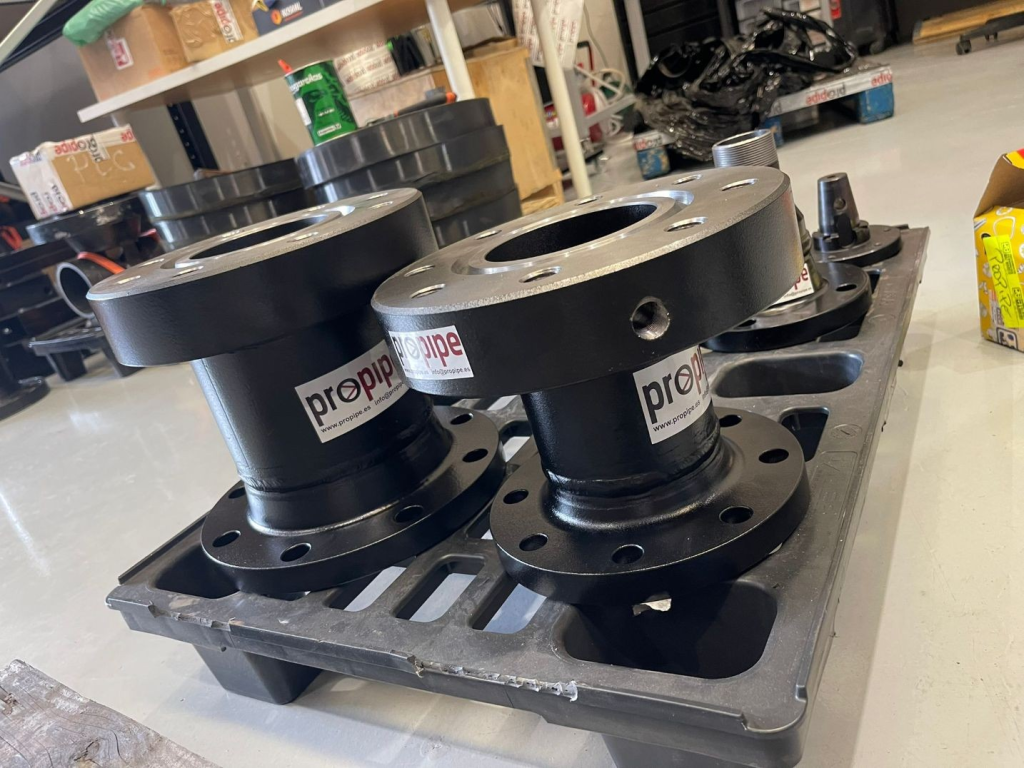

Hot Tap Adapters
Hot tap adapters are used with Propipe PTM-1000, PTM-3000 and PTM-5000 hot tapping machines. PTM-1000 adapters are flanged valve adapters (2″ to 6″) and threaded valve adapters (1″ to 3″). PTM-3000 and PTM-5000 adapters are raised face (RF) adapters from 3″ to 42″.
Hot Tap Adapter and Line Stop Housing Specifications
General Specifications: Propipe Hot Tap Adapters and Line Stop Housings
| Hot Tap Adapters | For PTM-1000, PTM-3000 and PTM-5000 hot tapping machines |
|---|---|
| Adapter Types | PTM-1000: flanged valve adapters and threaded valve adapters PTM-3000 and PTM-5000: raised face (RF) adapters |
| Adapter Sizes | 1″ to 42″ |
| Line Stop Housings | Adapters that hold the line stop head inside; connected to the slim valves and hydraulic actuators |
| Housing Sizes | 4″ to 36″ (housings for PTM-3000: 4″ to 20″; housings for PTM-5000: 14″ to 36″) |
| Pressure Classes | Class 150#, 300# and 600# (flanged valve adapters, RF adapters and line stop housings) |
| Threaded Valve Adapters | Maximum pressure 1,480 psi (100 bar) |
| Data Sheets | Hot Tap Adapters | Line Stop Housings |

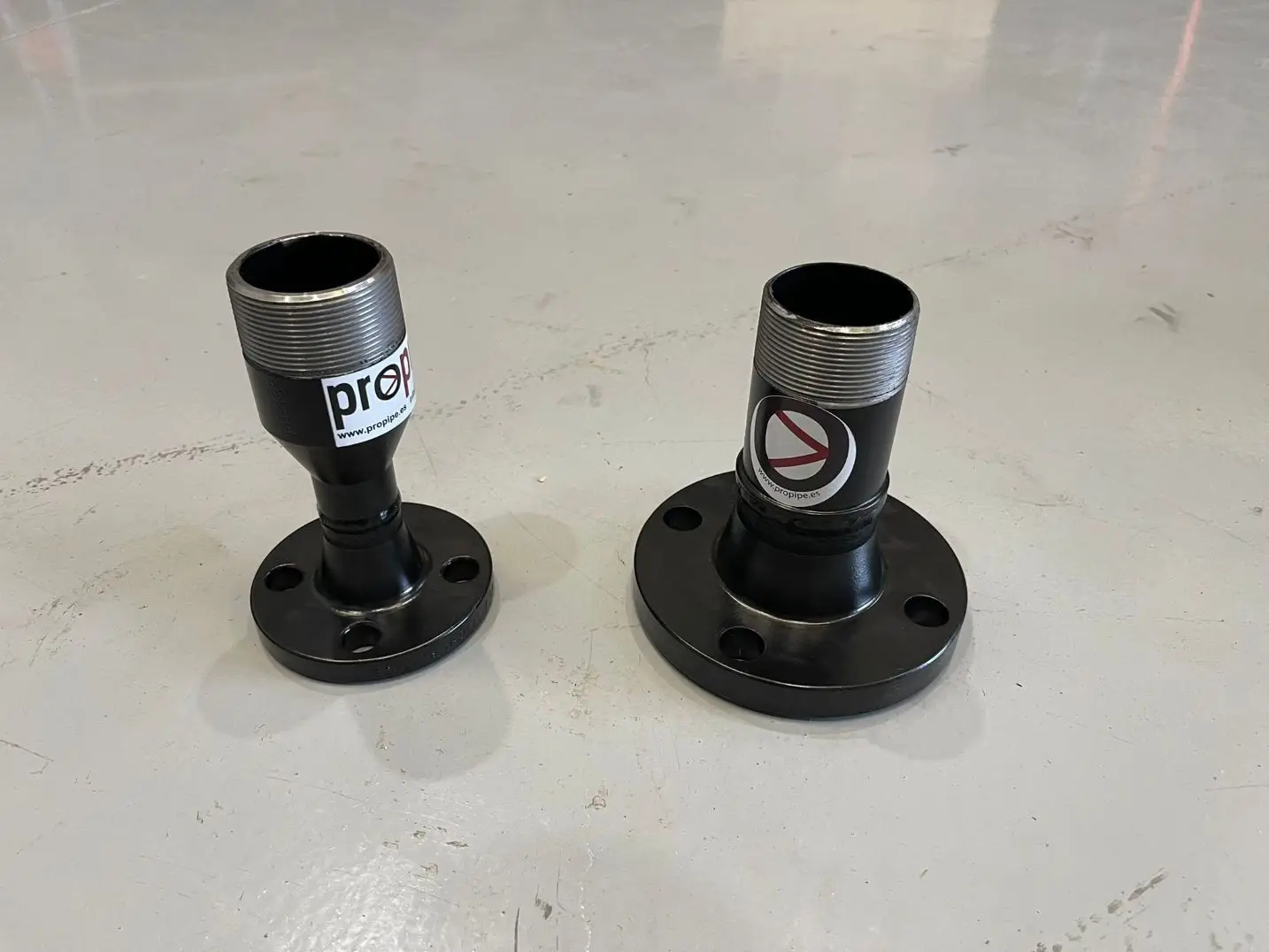

PTM-1000 Flanged Valve Adapters
Flanged valve adapters for the PTM-1000 hot tapping machine. Sizes 2″ to 6″ in Class 150#, 300# and 600#.
| Size | Class 150# Stock Number | Class 300# Stock Number | Class 600# Stock Number |
|---|---|---|---|
| 2″ (50 mm) | PFVA-02-15 | PFVA-02-30 | PFVA-02-60 |
| 3″ (80 mm) | PFVA-03-15 | PFVA-03-30 | PFVA-03-60 |
| 4″ (100 mm) | PFVA-04-15 | PFVA-04-30 | PFVA-04-60 |
| 6″ (150 mm) | PFVA-06-15 | PFVA-06-30 | PFVA-06-60 |

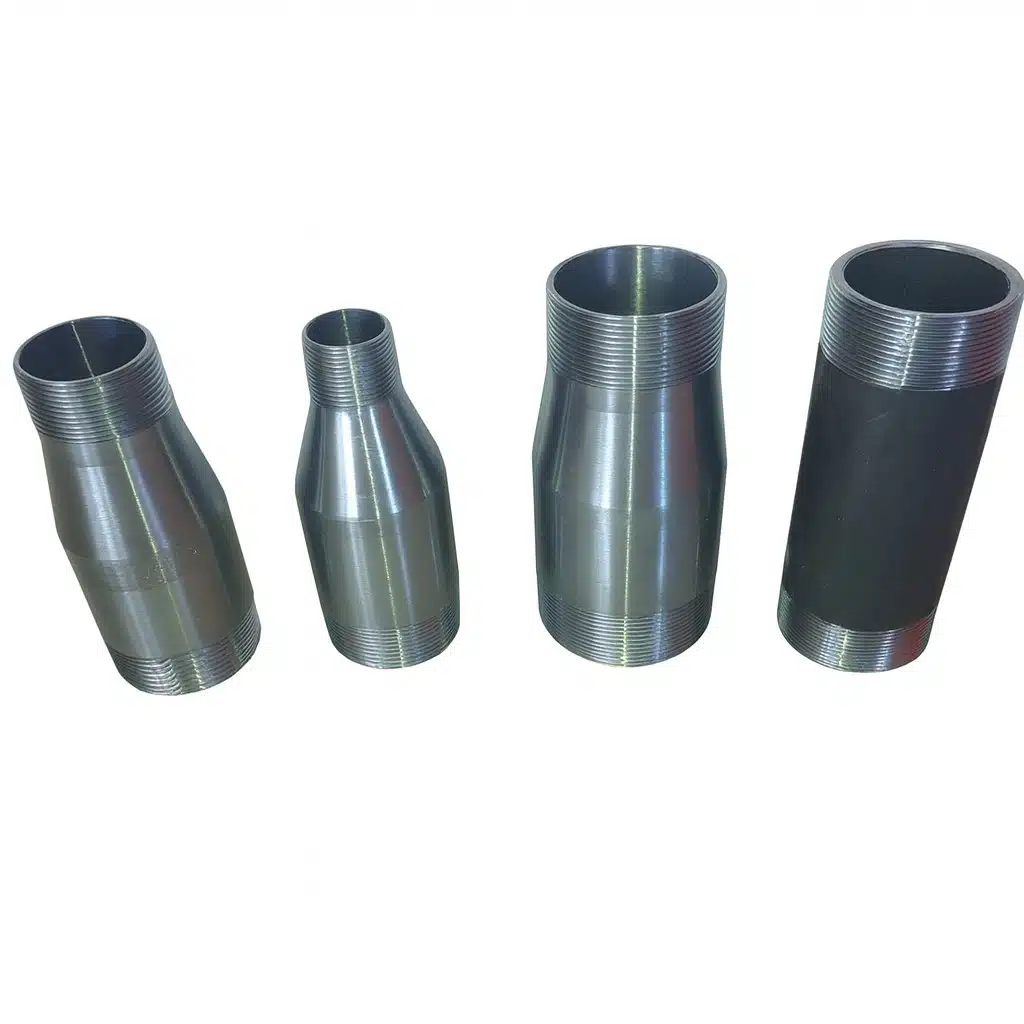

PTM-1000 Threaded Valve Adapters
Threaded valve adapters for the PTM-1000 hot tapping machine. Sizes 1″ to 3″. Maximum pressure 1,480 psi (100 bar).
| Size | Stock Number | Maximum Pressure |
|---|---|---|
| 1″ (25 mm) | PTVA-1000-25 | 1,480 psi (100 bar) |
| 1-1/4″ (32 mm) | PTVA-1000-32 | 1,480 psi (100 bar) |
| 1-1/2″ (38 mm) | PTVA-1000-38 | 1,480 psi (100 bar) |
| 2″ (50 mm) | PTVA-1000-50 | 1,480 psi (100 bar) |
| 3″ (80 mm) | PTVA-1000-80 | 1,480 psi (100 bar) |

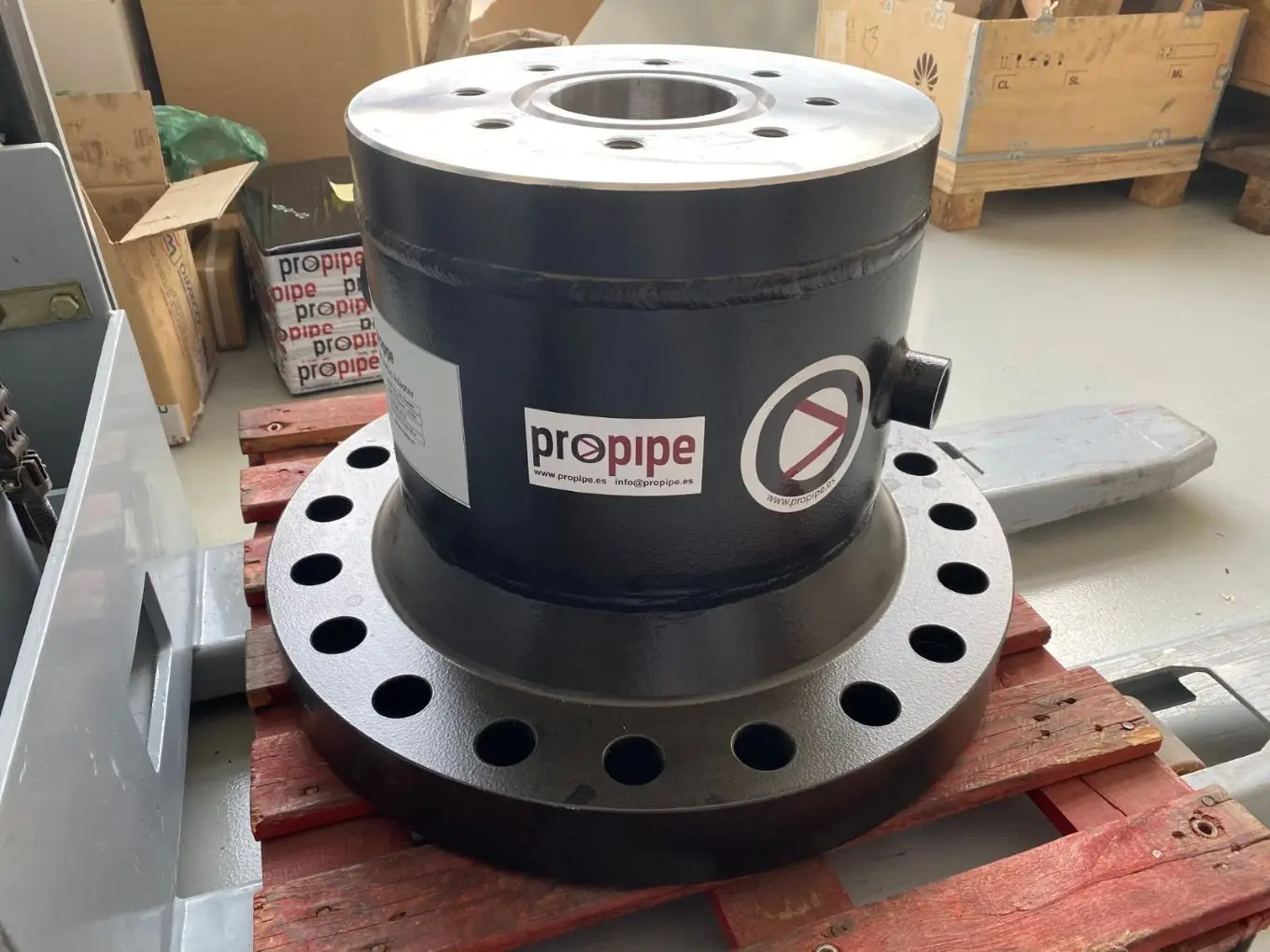

PTM-3000 Raised Face (RF) Adapters
Raised face (RF) adapters for the PTM-3000 hot tapping machine. Sizes 3″ to 20″ in Class 150#, 300# and 600#.
| Size | Class 150# Weight | Class 150# Stock Number | Class 300# Weight | Class 300# Stock Number | Class 600# Weight | Class 600# Stock Number |
|---|---|---|---|---|---|---|
| 3″ (80 mm) | 54 lb (25 kg) | PHA-3000-15-03 | 55 lb (25 kg) | PHA-3000-30-03 | 57 lb (26 kg) | PHA-3000-60-03 |
| 4″ (100 mm) | 57 lb (26 kg) | PHA-3000-15-04 | 65 lb (30 kg) | PHA-3000-30-04 | 80 lb (36 kg) | PHA-3000-60-04 |
| 6″ (150 mm) | 70 lb (32 kg) | PHA-3000-15-06 | 95 lb (43 kg) | PHA-3000-30-06 | 146 lb (66 kg) | PHA-3000-60-06 |
| 8″ (200 mm) | 85 lb (39 kg) | PHA-3000-15-08 | 100 lb (45 kg) | PHA-3000-30-08 | 150 lb (68 kg) | PHA-3000-60-08 |
| 10″ (250 mm) | 115 lb (52 kg) | PHA-3000-15-10 | 155 lb (70 kg) | PHA-3000-30-10 | 200 lb (91 kg) | PHA-3000-60-10 |
| 12″ (300 mm) | 170 lb (77 kg) | PHA-3000-15-12 | 215 lb (98 kg) | PHA-3000-30-12 | 315 lb (143 kg) | PHA-3000-60-12 |
| 14″ (350 mm) | 260 lb (118 kg) | PHA-3000-15-14 | 315 lb (143 kg) | PHA-3000-30-14 | 510 lb (232 kg) | PHA-3000-60-14 |
| 16″ (400 mm) | 325 lb (148 kg) | PHA-3000-15-16 | 415 lb (189 kg) | PHA-3000-30-16 | 580 lb (264 kg) | PHA-3000-60-16 |
| 18″ (450 mm) | 550 lb (250 kg) | PHA-3000-15-18 | 610 lb (277 kg) | PHA-3000-30-18 | 730 lb (332 kg) | PHA-3000-60-18 |
| 20″ (500 mm) | 680 lb (309 kg) | PHA-3000-15-20 | 790 lb (359 kg) | PHA-3000-30-20 | 990 lb (450 kg) | PHA-3000-60-20 |
PTM-5000 Raised Face (RF) Adapters
Raised face (RF) adapters for the PTM-5000 hot tapping machine. Sizes 14″ to 42″ in Class 150#, 300# and 600#.
| Size | Class 150# Weight | Class 150# Stock Number | Class 300# Weight | Class 300# Stock Number | Class 600# Weight | Class 600# Stock Number |
|---|---|---|---|---|---|---|
| 14″ (350 mm) | 260 lb (118 kg) | PHA-5000-15-14 | 315 lb (143 kg) | PHA-5000-30-14 | 510 lb (232 kg) | PHA-5000-60-14 |
| 16″ (400 mm) | 325 lb (148 kg) | PHA-5000-15-16 | 415 lb (189 kg) | PHA-5000-30-16 | 580 lb (264 kg) | PHA-5000-60-16 |
| 18″ (450 mm) | 550 lb (250 kg) | PHA-5000-15-18 | 610 lb (277 kg) | PHA-5000-30-18 | 730 lb (332 kg) | PHA-5000-60-18 |
| 20″ (500 mm) | 680 lb (309 kg) | PHA-5000-15-20 | 790 lb (359 kg) | PHA-5000-30-20 | 990 lb (450 kg) | PHA-5000-60-20 |
| 22″ (550 mm) | 873 lb (397 kg) | PHA-5000-15-22 | 980 lb (445 kg) | PHA-5000-30-22 | 1,177 lb (535 kg) | PHA-5000-60-22 |
| 24″ (600 mm) | 1,051 lb (478 kg) | PHA-5000-15-24 | 1,167.5 lb (531 kg) | PHA-5000-30-24 | 1,382 lb (628 kg) | PHA-5000-60-24 |
| 26″ (650 mm) | 1,228 lb (558 kg) | PHA-5000-15-26 | 1,355 lb (616 kg) | PHA-5000-30-26 | 1,587 lb (721 kg) | PHA-5000-60-26 |
| 28″ (700 mm) | 1,406 lb (639 kg) | PHA-5000-15-28 | 1,542.5 lb (701 kg) | PHA-5000-30-28 | 1,792 lb (814 kg) | PHA-5000-60-28 |
| 30″ (750 mm) | 1,583 lb (720 kg) | PHA-5000-15-30 | 1,730 lb (786 kg) | PHA-5000-30-30 | 1,997 lb (908 kg) | PHA-5000-60-30 |
| 32″ (800 mm) | 1,761 lb (800 kg) | PHA-5000-15-32 | 1,917.5 lb (872 kg) | PHA-5000-30-32 | 2,202 lb (1,001 kg) | PHA-5000-60-32 |
| 34″ (850 mm) | 1,938 lb (881 kg) | PHA-5000-15-34 | 2,105 lb (957 kg) | PHA-5000-30-34 | 2,407 lb (1,094 kg) | PHA-5000-60-34 |
| 36″ (900 mm) | 2,116 lb (962 kg) | PHA-5000-15-36 | 2,292.5 lb (1,042 kg) | PHA-5000-30-36 | 2,612 lb (1,187 kg) | PHA-5000-60-36 |
| 38″ (950 mm) | 2,293 lb (1,042 kg) | PHA-5000-15-38 | 2,480 lb (1,127 kg) | PHA-5000-30-38 | 2,817 lb (1,280 kg) | PHA-5000-60-38 |
| 40″ (1000 mm) | 2,471 lb (1,123 kg) | PHA-5000-15-40 | 2,667.5 lb (1,213 kg) | PHA-5000-30-40 | 3,022 lb (1,373 kg) | PHA-5000-60-40 |
| 42″ (1050 mm) | 2,648 lb (1,204 kg) | PHA-5000-15-42 | 2,855 lb (1,298 kg) | PHA-5000-30-42 | 3,227 lb (1,467 kg) | PHA-5000-60-42 |

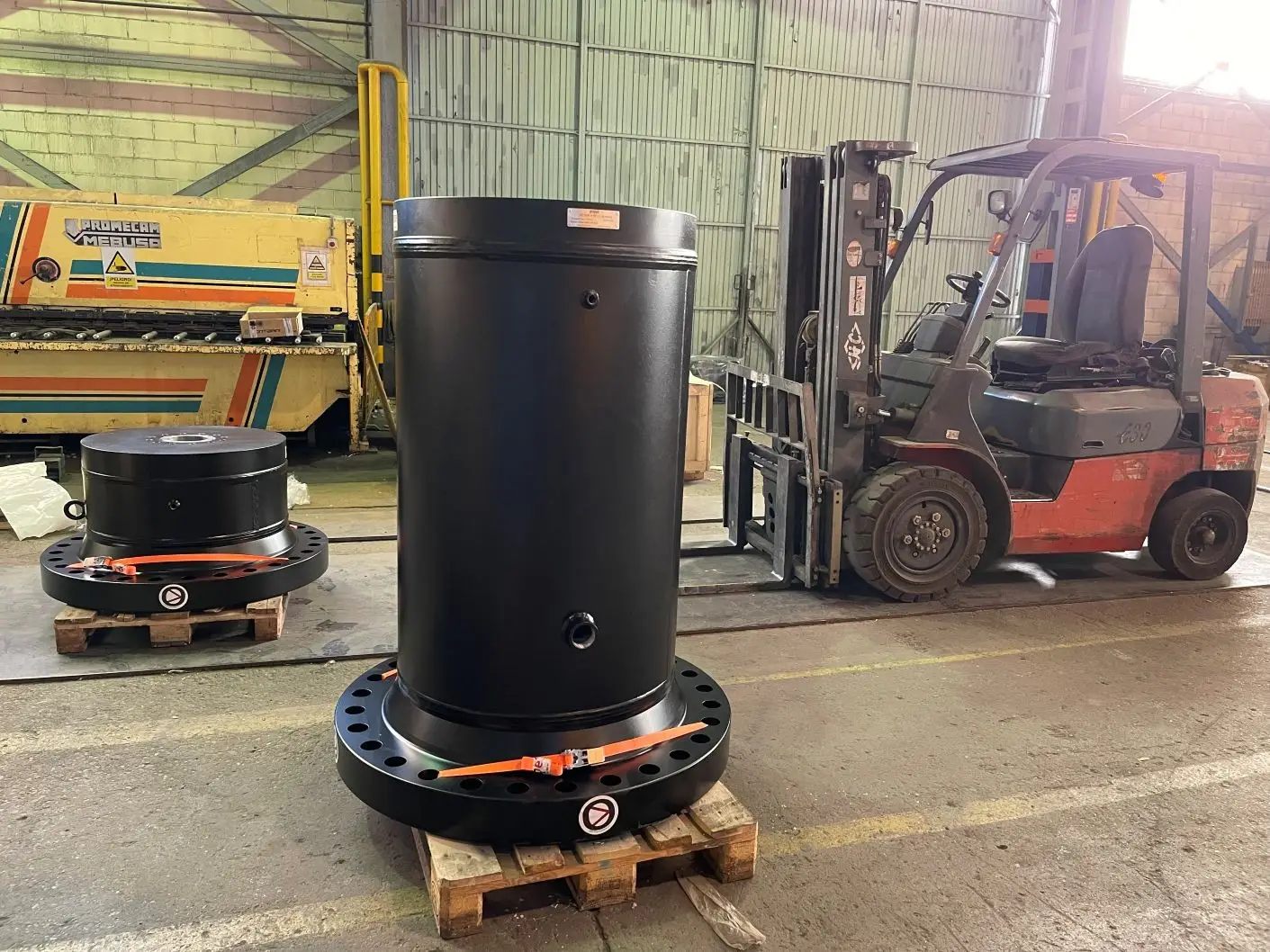

Line Stop Housings
Line stop housings are adapters that hold the line stop head inside. They are connected to the slim valves and hydraulic actuators. Sizes 4″ to 36″ in Class 150#, 300# and 600#. Dimensions A, B, C and L are as shown on the data sheet drawing.
Housings for PTM-3000: 4″ to 20″
| Size | A | B | C | L |
|---|---|---|---|---|
| 4″ (DN 100) | 11″ (279.4 mm) | 14″ (355.6 mm) | 58″ (1,473.2 mm) | 72″ (1,828.8 mm) |
| 6″ (DN 150) | 14″ (355.6 mm) | 17″ (431.8 mm) | 58″ (1,473.2 mm) | 75″ (1,905 mm) |
| 8″ (DN 200) | 17″ (431.8 mm) | 19″ (482.6 mm) | 85″ (2,159 mm) | 104″ (2,641.6 mm) |
| 10″ (DN 250) | 20″ (508 mm) | 23″ (584.2 mm) | 85″ (2,159 mm) | 108″ (2,743.2 mm) |
| 12″ (DN 300) | 22″ (558.8 mm) | 25″ (635 mm) | 85″ (2,159 mm) | 110″ (2,794 mm) |
| 14″ (DN 350) | 24″ (609.6 mm) | 32″ (812.8 mm) | 124″ (3,149.6 mm) | 156″ (3,962.4 mm) |
| 16″ (DN 400) | 27″ (685.8 mm) | 35″ (889 mm) | 124″ (3,149.6 mm) | 159″ (4,038.6 mm) |
| 18″ (DN 450) | 30″ (762 mm) | 39″ (990.6 mm) | 124″ (3,149.6 mm) | 163″ (4,140.2 mm) |
| 20″ (DN 500) | 32″ (812.8 mm) | 42″ (1,066.8 mm) | 124″ (3,149.6 mm) | 166″ (4,216.4 mm) |
| Size | Class 150# Weight | Class 150# Stock Number | Class 300# Weight | Class 300# Stock Number | Class 600# Weight | Class 600# Stock Number |
|---|---|---|---|---|---|---|
| 4″ (DN 100) | 32 lb (15 kg) | PHL-04-15 | 43 lb (20 kg) | PHL-04-30 | 60 lb (27 kg) | PHL-04-60 |
| 6″ (DN 150) | 56 lb (25 kg) | PHL-06-15 | 73 lb (33 kg) | PHL-06-30 | 75 lb (34 kg) | PHL-06-60 |
| 8″ (DN 200) | 92 lb (42 kg) | PHL-08-15 | 130 lb (59 kg) | PHL-08-30 | 187 lb (85 kg) | PHL-08-60 |
| 10″ (DN 250) | 128 lb (58 kg) | PHL-10-15 | 185 lb (84 kg) | PHL-10-30 | 270 lb (123 kg) | PHL-10-60 |
| 12″ (DN 300) | 200 lb (91 kg) | PHL-12-15 | 285 lb (130 kg) | PHL-12-30 | 350 lb (159 kg) | PHL-12-60 |
| 14″ (DN 350) | 327 lb (149 kg) | PHL-14-15 | 410 lb (186 kg) | PHL-14-30 | 570 lb (259 kg) | PHL-14-60 |
| 16″ (DN 400) | 410 lb (186 kg) | PHL-16-15 | 535 lb (243 kg) | PHL-16-30 | 660 lb (300 kg) | PHL-16-60 |
| 18″ (DN 450) | 480 lb (218 kg) | PHL-18-15 | 655 lb (298 kg) | PHL-18-30 | 955 lb (434 kg) | PHL-18-60 |
| 20″ (DN 500) | 600 lb (273 kg) | PHL-20-15 | 735 lb (334 kg) | PHL-20-30 | 1,025 lb (466 kg) | PHL-20-60 |
Housings for PTM-5000: 14″ to 36″
| Size | A | B | C | L |
|---|---|---|---|---|
| 14″ (DN 350) | 24″ (609.6 mm) | 32″ (812.8 mm) | 124″ (3,149.6 mm) | 156″ (3,962.4 mm) |
| 16″ (DN 400) | 27″ (685.8 mm) | 35″ (889 mm) | 124″ (3,149.6 mm) | 159″ (4,038.6 mm) |
| 18″ (DN 450) | 30″ (762 mm) | 39″ (990.6 mm) | 124″ (3,149.6 mm) | 163″ (4,140.2 mm) |
| 20″ (DN 500) | 32″ (812.8 mm) | 42″ (1,066.8 mm) | 124″ (3,149.6 mm) | 166″ (4,216.4 mm) |
| 22″ (DN 550) | 35″ (889 mm) | 46″ (1,168.4 mm) | 166″ (4,216.4 mm) | 212″ (5,384.8 mm) |
| 24″ (DN 600) | 37″ (939.8 mm) | 52″ (1,320.8 mm) | 166″ (4,216.4 mm) | 218″ (5,537.2 mm) |
| 26″ (DN 650) | 40″ (1,016 mm) | 52″ (1,320.8 mm) | 166″ (4,216.4 mm) | 218″ (5,537.2 mm) |
| 30″ (DN 750) | 45″ (1,143 mm) | 60″ (1,524 mm) | 166″ (4,216.4 mm) | 226″ (5,740.4 mm) |
| 32″ (DN 800) | 47″ (1,193.8 mm) | 62″ (1,574.8 mm) | 166″ (4,216.4 mm) | 228″ (5,791.2 mm) |
| 34″ (DN 850) | 49″ (1,244.6 mm) | 64″ (1,625.6 mm) | 166″ (4,216.4 mm) | 230″ (5,842 mm) |
| 36″ (DN 900) | 52″ (1,320.8 mm) | 67″ (1,701.8 mm) | 166″ (4,216.4 mm) | 233″ (5,918.2 mm) |
| Size | Class 150# Weight | Class 150# Stock Number | Class 300# Weight | Class 300# Stock Number | Class 600# Weight | Class 600# Stock Number |
|---|---|---|---|---|---|---|
| 14″ (DN 350) | 327 lb (149 kg) | PHL-14-15 | 410 lb (186 kg) | PHL-14-30 | 570 lb (259 kg) | PHL-14-60 |
| 16″ (DN 400) | 410 lb (186 kg) | PHL-16-15 | 535 lb (243 kg) | PHL-16-30 | 660 lb (300 kg) | PHL-16-60 |
| 18″ (DN 450) | 480 lb (218 kg) | PHL-18-15 | 655 lb (298 kg) | PHL-18-30 | 955 lb (434 kg) | PHL-18-60 |
| 20″ (DN 500) | 600 lb (273 kg) | PHL-20-15 | 735 lb (334 kg) | PHL-20-30 | 1,025 lb (466 kg) | PHL-20-60 |
| 22″ (DN 550) | 770 lb (350 kg) | PHL-22-15 | 985 lb (448 kg) | PHL-22-30 | 1,365 lb (620 kg) | PHL-22-60 |
| 24″ (DN 600) | 935 lb (425 kg) | PHL-24-15 | 1,225 lb (557 kg) | PHL-24-30 | 1,740 lb (791 kg) | PHL-24-60 |
| 26″ (DN 650) | 1,075 lb (489 kg) | PHL-26-15 | 1,410 lb (641 kg) | PHL-26-30 | 1,875 lb (852 kg) | PHL-26-60 |
| 30″ (DN 750) | 1,425 lb (648 kg) | PHL-30-15 | 1,795 lb (816 kg) | PHL-30-30 | 2,440 lb (1,109 kg) | PHL-30-60 |
| 32″ (DN 800) | 1,490 lb (677 kg) | PHL-32-15 | 1,850 lb (841 kg) | PHL-32-30 | 3,200 lb (1,455 kg) | PHL-32-60 |
| 34″ (DN 850) | 1,525 lb (693 kg) | PHL-34-15 | 1,935 lb (880 kg) | PHL-34-30 | 4,050 lb (1,841 kg) | PHL-34-60 |
| 36″ (DN 900) | 1,550 lb (705 kg) | PHL-36-15 | 2,100 lb (955 kg) | PHL-36-30 | 5,130 lb (2,332 kg) | PHL-36-60 |
Frequently Asked Questions
Hot Tap Adapters
What hot tap adapters are available for the PTM-1000?
Flanged valve adapters in 2″, 3″, 4″ and 6″ (Class 150#, 300# and 600#) and threaded valve adapters in 1″, 1-1/4″, 1-1/2″, 2″ and 3″.
What is the maximum pressure for threaded valve adapters?
1,480 psi (100 bar), per the data sheet.
What sizes do PTM-3000 raised face (RF) adapters cover?
3″ to 20″ in Class 150#, 300# and 600#.
What sizes do PTM-5000 raised face (RF) adapters cover?
14″ to 42″ in Class 150#, 300# and 600#.
How much does a raised face (RF) hot tap adapter weigh?
From 54 lb (25 kg) for a 3″ Class 150# PTM-3000 adapter to 3,227 lb (1,467 kg) for a 42″ Class 600# PTM-5000 adapter. Weights for each size and class are listed in the tables above.
Line Stop Housings
What does a line stop housing do?
A line stop housing is an adapter that holds the line stop head inside. It is connected to the slim valve and the hydraulic actuator.
What sizes are line stop housings available in?
4″ to 36″ in Class 150#, 300# and 600#. Housings for PTM-3000 cover 4″ to 20″; housings for PTM-5000 cover 14″ to 36″.
How much does a line stop housing weigh?
From 32 lb (15 kg) for a 4″ Class 150# housing to 5,130 lb (2,332 kg) for a 36″ Class 600# housing.
Ordering
How do the stock number suffixes work?
The suffix -15, -30 or -60 indicates Class 150#, 300# or 600#. For example, PHA-3000-30-12 is a 12″ Class 300# PTM-3000 raised face adapter, and PHL-24-60 is a 24″ Class 600# line stop housing.
How do I request a quote?
Use the Request A Quote button in the product section above, or contact Enerteq Solutions with the size, pressure class and stock number.
