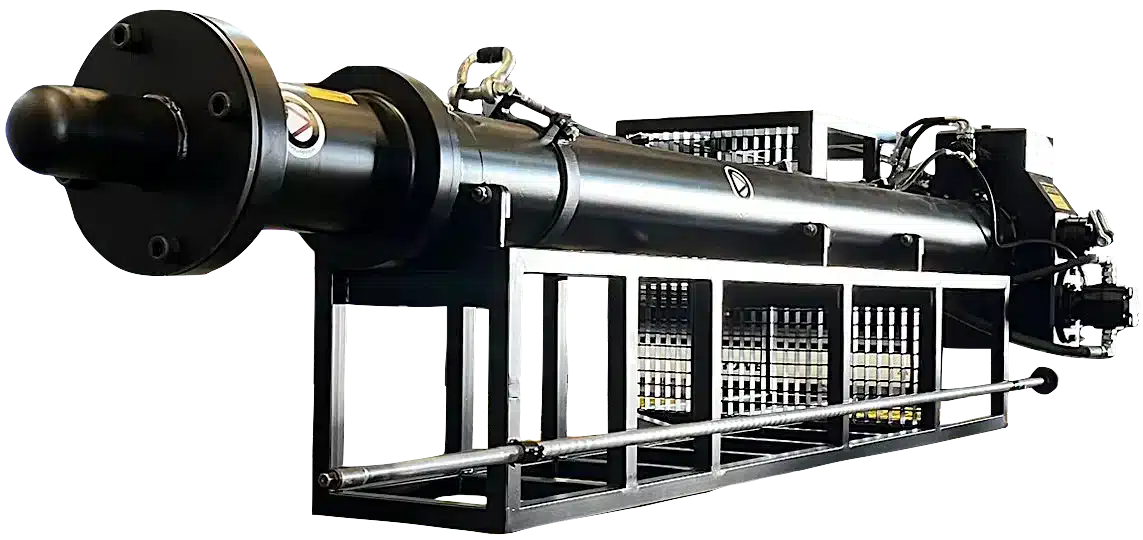

Propipe PTM Hot Tap Machines: Safe, Pressurized Line Entry
The PTM Hot Tap Machine is a tapping system engineered for safe, efficient access to pressurized pipelines. Designed for live pipeline interventions, it enables technicians to drill into active lines without interrupting flow—making it ideal for installing branch connections, valves, or line stop equipment.
How It Works:
- Mounted on a valve and fitting pre-installed on the pipeline.
- Drives a cutter through the pipe wall.
- Once the cut is complete, the machine retracts, and the valve is closed to seal the system.
This machine is essential for field crews and maintenance teams seeking reliable, compliant solutions for pipeline access under pressure. Perfect for reducing operational risk and maximizing uptime.
Key Functions:
- Hot Tapping: Creates a controlled opening in a live pipeline through a valve and fitting, enabling tie-ins or access without depressurization.
- Line Stop Preparation: Often used in conjunction with line stop systems to isolate sections of pipe for maintenance or rerouting.
- High-Pressure Operation: Rated to a maximum working pressure of 1,480 psi (100 bar).
Key Benefits:
• Live Access Without Shutdown: Perform hot taps on pressurized systems without service interruption.
• Supports Valve and Line Stop Installation: Compatible with various fittings for pipeline modification and isolation.
• Minimizes Downtime: Maintains operational continuity during maintenance or expansion.
Hot Tap Machines and Specifications
Propipe Hot Tap Machine Demo Precision Cutting for Live Pipeline Access
This short video showcases the performance of the Propipe hot tap machine, engineered for precision cutting into pressurized pipelines without shutdown. Watch as the machine drives the cutter through the pipe wall, delivering clean, controlled access for line stop or bypass operations. Designed for high-pressure environments, the hot tap system integrates seamlessly with Propipe actuators, valves, and pilot drills—making it a trusted solution for oil, gas, water, and industrial fluid networks.
Want to see more videos? Check out https://www.youtube.com/@EnerteqSolutions.
General Specifications: PTM Series
These capabilities apply to all PTM hot tap machines. Models, capacities and ratings are listed under each series below.
| Wall Thickness | Cuts up to 3″ wall thickness mild steel |
|---|---|
| Materials | Able to cut stainless steel, API grade pipe (Gr. B and X80) and concrete |
| Plugs | Capable of installing LockSure and flow-through plugs |
| Compatibility | Compatible with most major brands of equipment and tooling |
| Feed | Powered feed for cutting that is proportional to the spindle rpm, plus rapid travel |
| Capacities | Stated for drilling mild steel pipe; may be reduced when operating on other materials |
| Orientation | Taps horizontally, vertically or at any angle (all PTM series) |
| Subsea | All PTM series can be used subsea |
PTM-1000 Series

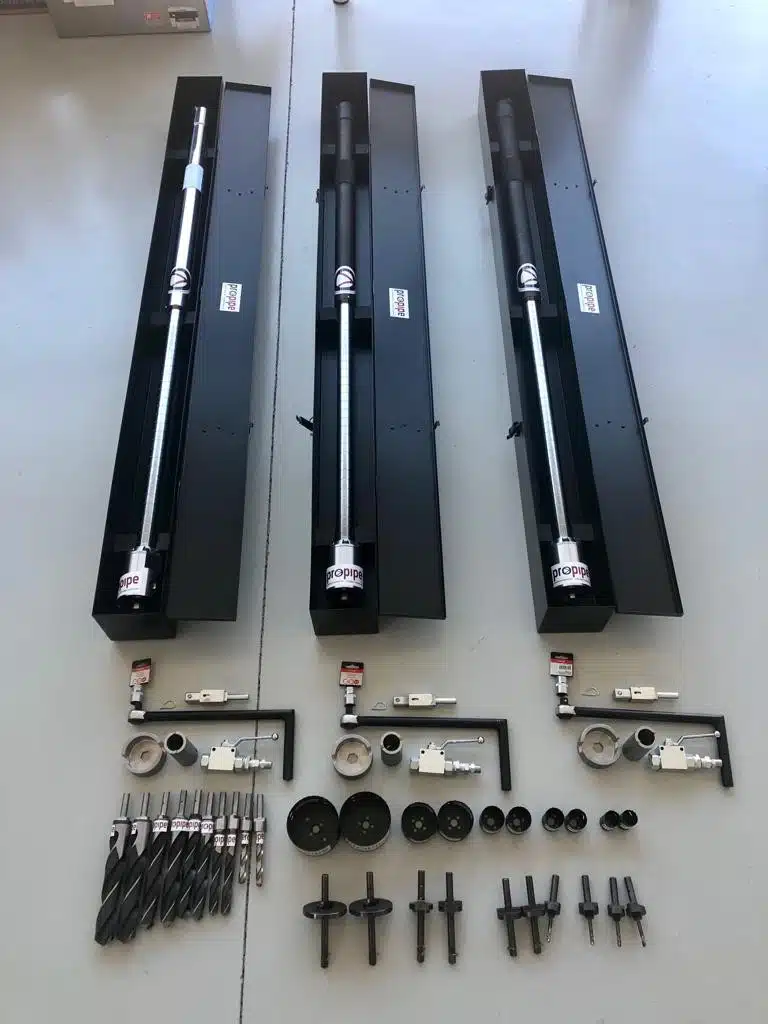

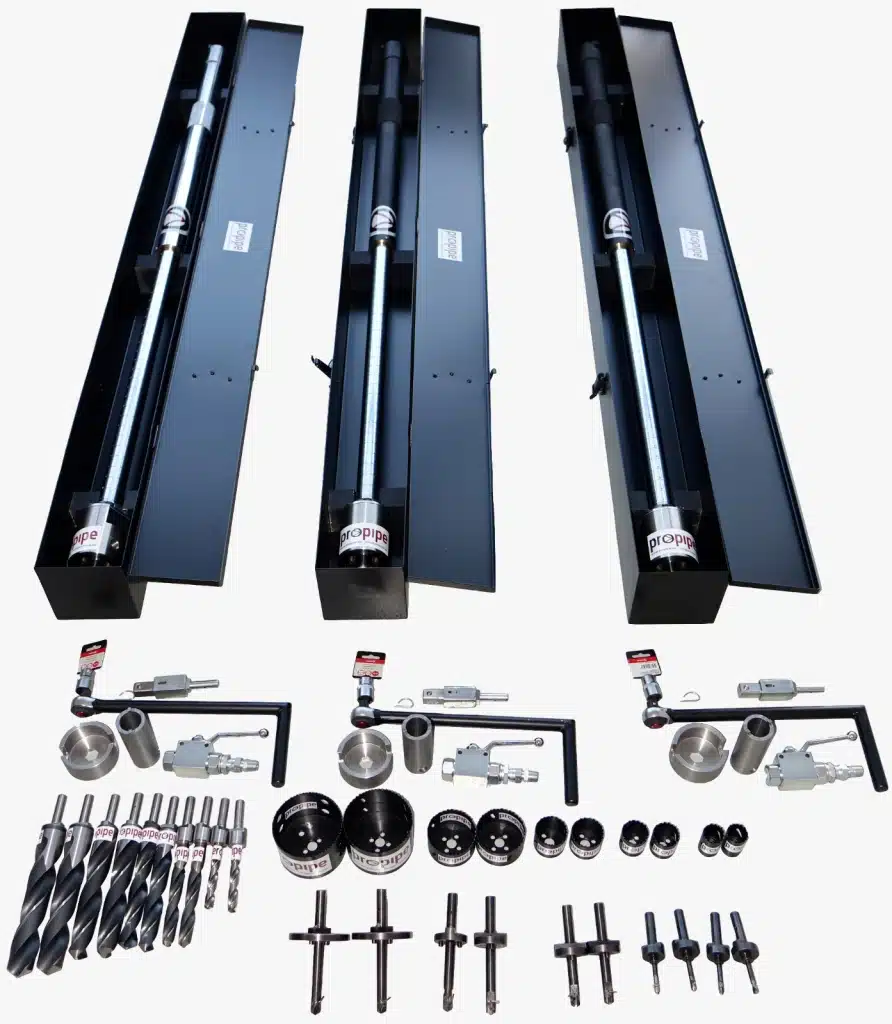

PTM-1000 Series hot tap machines are used for making connections to pipelines, tanks and plant piping without shutdown, and to make hot taps in preparation for plugging machine application. The series can be operated manually or by air with the optional PPM-1000 air motor.
Models:
| Model | Drilling Capacity | Stroke | Weight |
|---|---|---|---|
| PTM-1018-MN | 1/4″ – 4″ | 18″ | 32 lb |
| PTM-1028-MN | 1/4″ – 6″ | 28″ | 41 lb |
| PTM-1032-MN | 1/4″ – 6″ | 32″ | 50 lb |
Special strokes of 20″ or 24″ are available.
Ratings:
| Maximum Working Pressure | 1,480 psi (100 bar) at 100°F (38°C) |
|---|---|
| Intermittent Service | −20°F (−29°C) to 700°F (371°C) at 700 psi (48 bar) |
| Maximum Continuous Rating | 350°F (177°C) at 1,025 psi (70 bar) |
| Materials and Standards | Meets NACE Standard and CE; sulfide stress cracking resistant metallic material for oilfield equipment |
For special requirements, such as higher pressure or temperature, consult the factory.
Optional PPM-1000 Air Motor (pneumatic air wrench):
| Power | 0.6 HP |
|---|---|
| Torque | 66 lbf·ft (90 Nm) |
| Weight | 5.2 lb (2.35 kg) |
| Speed | 150 rpm |
| Air Consumption | 27.5 cfm (13 l/s) |
Download the PTM-1000 Series data sheet (PDF) for tooling and stock numbers.

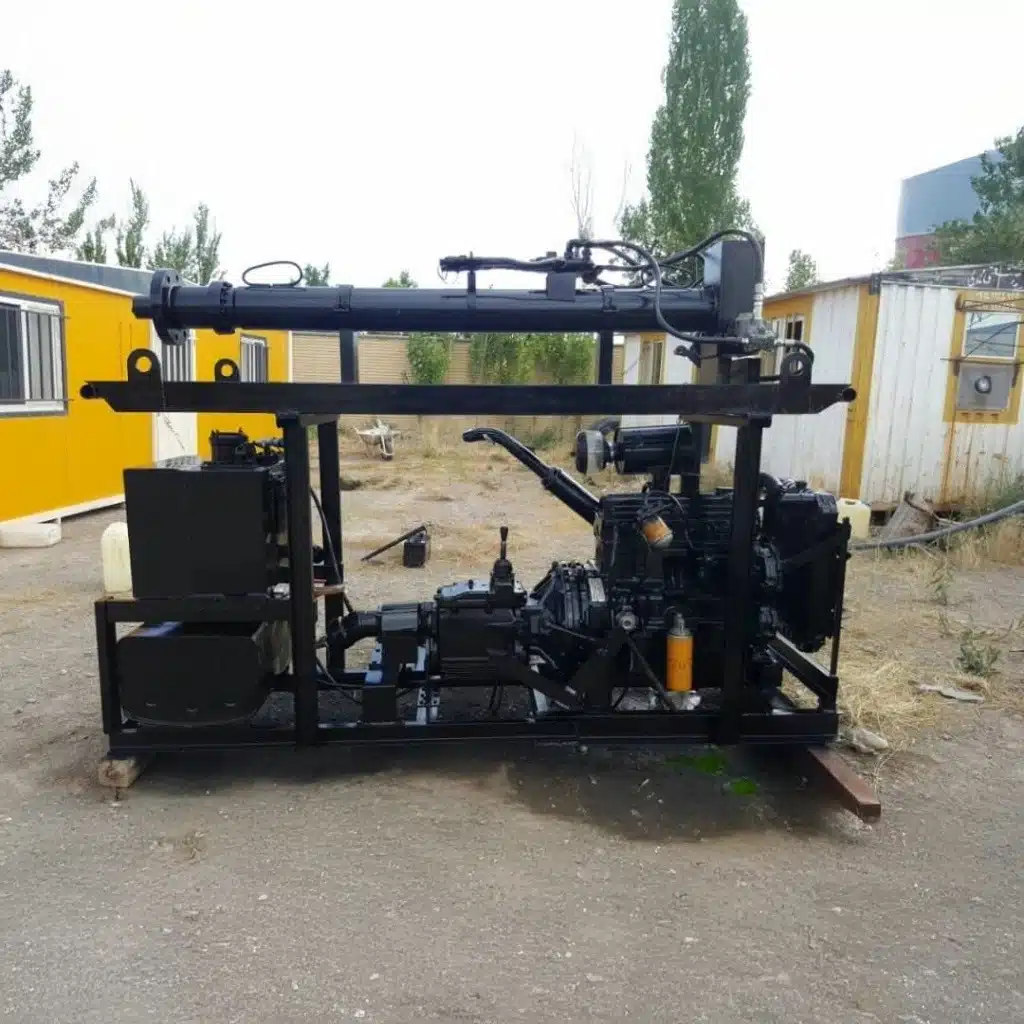

PTM-2000 Series
PTM-2000 Series hot tap machines are used for making connections to pipelines, tanks and plant piping without shutdown, and to make hot taps in preparation for plugging machine application. The PTM-2000 Series can be built for pneumatic or hydraulic operation.
Models:
| Model | Drilling Capacity | Stroke |
|---|---|---|
| PTM-2024-PN | 3″ – 8″ | 24″ |
| PTM-2028-PN | 3″ – 8″ | 28″ |
Specifications:
| Maximum Working Pressure | 1,480 psi (100 bar) at 100°F (38°C) |
|---|---|
| Intermittent Service | −20°F (−29°C) to 700°F (371°C) at 700 psi (48 bar) |
| Maximum Continuous Rating | 350°F (177°C) at 1,025 psi (70 bar) |
| Materials and Standards | Meets NACE Standard and CE; sulfide stress cracking resistant metallic material for oilfield equipment |
| Length | 43.5″ (1,104 mm) |
| Weight | 141 lb (64 kg) |
For special requirements, such as higher pressure or temperature, consult the factory.
Download the PTM-2000 / 3000 Series data sheet (PDF) for tooling and stock numbers.

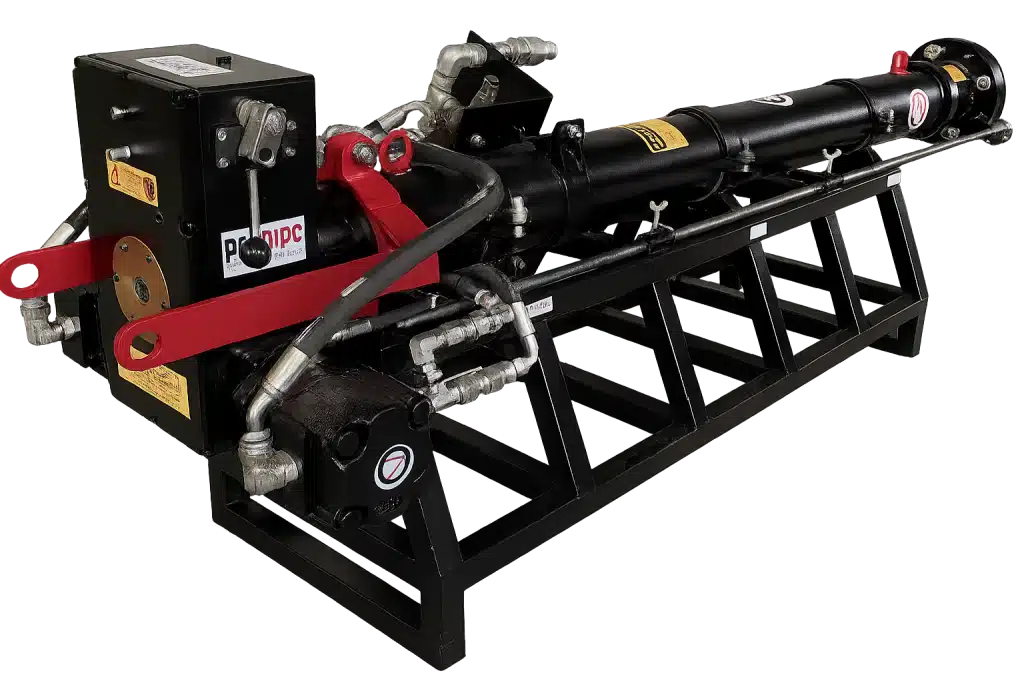

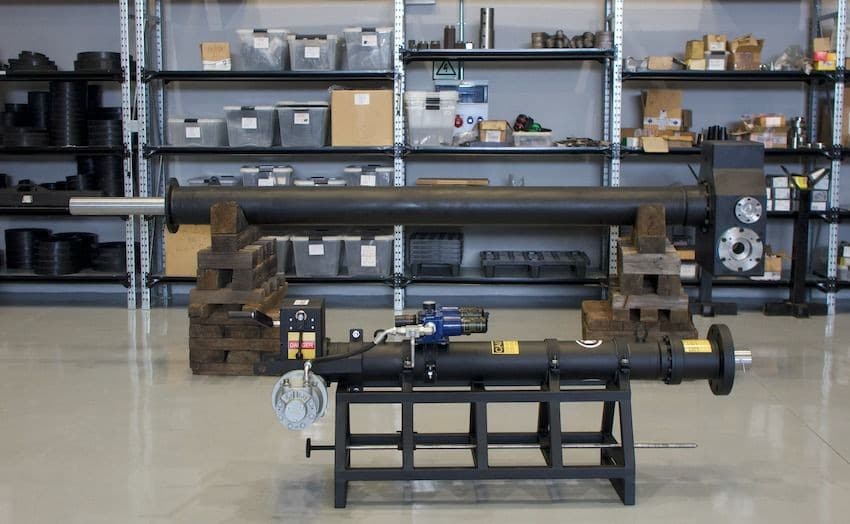

PTM-3000 Series
PTM-3000 Series hot tap machines are used for making connections to pipelines, tanks and plant piping without shutdown, and to make hot taps in preparation for plugging machine application. The series can be operated by air or hydraulics.
Models:
| Model | Drilling Capacity | Stroke |
|---|---|---|
| PTM-3048-PN | 3″ – 12″ | 48″ |
| PTM-3066-HYD or PN | 3″ – 16″ | 66″ |
| PTM-3070-HYD | 3″ – 20″ | 70″ |
Specifications:
| Dimensions | Length 82.7″ (2,100 mm), Width 19.7″ (500 mm), Height 21.1″ (536 mm) |
|---|---|
| Weight | 743 lb (337 kg) |
| Mounting | 4″ Class 600 RTJ type flange |
| Boring Bar | Chrome plated, one piece bar |
| Sealed | With Chevron Teflon |
| Tool Mounting | Industry standard taper |
| Tool Retention | Manual drawbar |
| Max Pressure Rating | 1,480 psi (100 bar) |
| Spindle Speed | 40 RPM with Propipe H23 Power Pack |
| Feed Rate | 0.0028″/rev (0.07 mm/rev) |
| Depth Measurement | By measuring rod |
| Drive System | Hydraulic motor, lubrication-free chain drive |
| Hydraulic Pressure | 1,750 psi (118 bar) – 2,000 psi (135 bar) |
The machine includes: lower-in crank, measuring rod, retainer rod pusher, ring gasket, bleeder valve and nipple, motor adapter, set of bolts and nuts, LockSure bypass gauge.
Download the PTM-2000 / 3000 Series data sheet (PDF) for tooling and stock numbers.

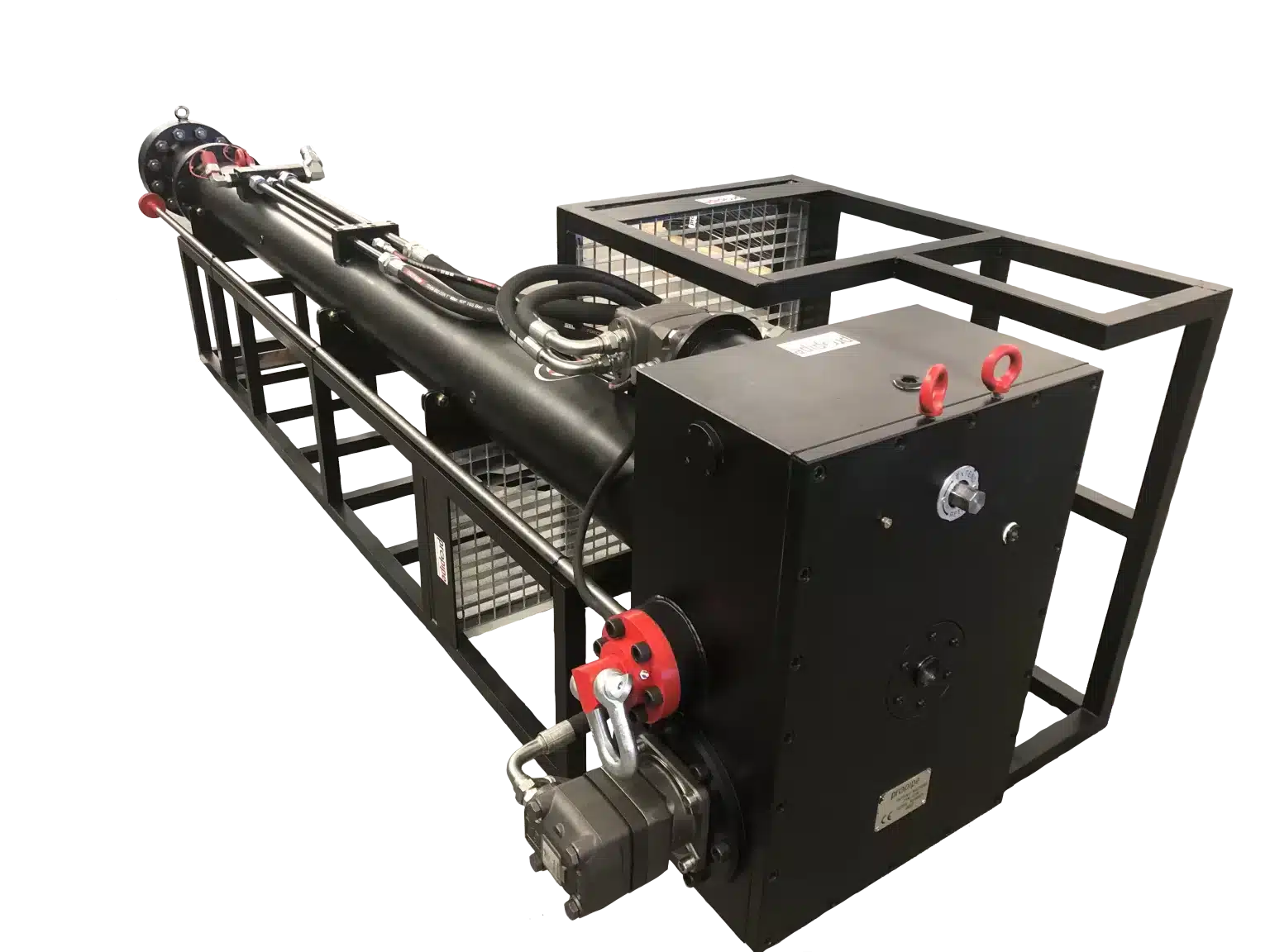

PTM-5000 Series
PTM-5000 Series hot tap machines are used for making connections to pipelines, tanks and plant piping without shutdown, and to make hot taps in preparation for plugging machine application. The PTM-5000 Series is hydraulically operated.
Models:
| Model | Drilling Capacity | Stroke |
|---|---|---|
| PTM-5078-HYD | 12″ – 36″ | 78″ |
| PTM-5108-HYD | 12″ – 42″ | 108″ |
| PTM-5130-HYD | 12″ – 44″ | 130″ |
Specifications:
| Dimensions | Length 122″ (3,100 mm), Height 29.9″ (760 mm), Width 34.3″ (870 mm) |
|---|---|
| Weight | 2,183 lb (990 kg) |
| Mounting | 6″ Class 600 RTJ type flange |
| Boring Bar | 3.9″ (100 mm) diameter, chrome plated, one piece bar |
| Sealed | With Chevron gland, 5,800 psi (400 bar) at 212°F (100°C) |
| Tool Mounting | Industry standard taper |
| Tool Retention | Manual drawbar sealed with Chevron gland |
| Max Pressure Rating | 1,480 psi (100 bar) |
| Spindle Speed | 25 RPM with Propipe PPP-5000 Power Pack |
| Feed Rate | 0.0047″/rev (0.12 mm/rev) |
| Drive System | Hydraulic motor driving spindle via chain; lubrication- and maintenance-free spindle drive |
| Rapid Boring Bar Travel | By hydraulic motor |
| Hydraulic Pressure | 1,750 psi (118 bar) – 2,000 psi (135 bar) max |
The machine includes: lower-in crank, measuring rod, retainer rod pusher, ring gasket, bleeder valve and nipple, motor adapter, set of bolts and nuts, LockSure bypass gauge.
Download the PTM-5000 Series data sheet (PDF) for tooling and stock numbers.
PTM-7000 Series
The PTM-7000 Series covers the largest diameter ranges in the PTM line.
Models:
| Model | Stroke | Diameter Range |
|---|---|---|
| PTM-7102-HYD | 102″ | 16″ – 72″ |
| PTM-7130-HYD | 130″ | 16″ – 64″ |
| PTM-7150-HYD | 150″ | 16″ – 56″ |
There is no separate data sheet for the PTM-7000; it functions like the PTM-5000 Series. The PTM-7000 figures above are from the PTM series overview chart. Contact Enerteq Solutions for PTM-7000 specifications.
Frequently Asked Questions
Hot Tapping Basics
What is a hot tapping machine?
A hot tapping machine drills a controlled opening into a live, pressurized pipeline. It mounts on a valve and fitting already installed on the pipe, drives a cutter through the pipe wall, then retracts so the valve can be closed and the line stays sealed. No shutdown or venting is needed.
How does hot tapping work?
A fitting is attached to the pipe and a valve is mounted on the fitting. The hot tap machine is mounted on the valve, and its cutter and pilot drill are advanced through the open valve to cut the pipe wall. When the cut is complete, the machine retracts the cutter and the valve is closed to seal the new connection.
Can a hot tap machine be used for a line stop?
Yes. The hot tap is the first step of a line stop. The machine cuts the opening, then a line stop actuator drives a plugging head through the same slim valve and fitting to block flow. Enerteq supplies the matching Propipe cutters, pilot drills and power units.
Machines and Pipe Sizes
Which hot tap machines does Enerteq supply?
Enerteq supplies the Propipe PTM range: the PTM-1000, PTM-2000, PTM-3000, PTM-5000 and PTM-7000 Series. Standard strokes run from 18″ on the PTM-1018-MN to 150″ on the PTM-7150-HYD. The PTM-1000 Series is also available with special strokes of 20″ or 24″.
What pipe sizes can be hot tapped?
Drilling capacity depends on the series: PTM-1000, 1/4″ to 6″; PTM-2000, 3″ to 8″; PTM-3000, 3″ to 20″; PTM-5000, 12″ to 44″. PTM-7000 diameter ranges run from 16″ up to 72″ depending on model; these figures are indicative and may vary. All capacities are for drilling mild steel pipe.
Can PTM machines tap at an angle?
Yes. All PTM series can tap horizontally, vertically or at any angle.
Can PTM machines be used subsea?
Yes. All PTM series can be used subsea.
Is there a PTM-7000 data sheet?
No. There is no separate data sheet for the PTM-7000; it functions like the PTM-5000 Series. Contact Enerteq Solutions for PTM-7000 specifications.
Are hot tap machines manual, pneumatic or hydraulic?
It depends on the series. The PTM-1000 can be operated manually or by air with the optional PPM-1000 air motor. The PTM-2000 can be built for pneumatic or hydraulic operation. The PTM-3000 can be operated by air or hydraulics. The PTM-5000 is hydraulically operated.
What powers the spindle on a hot tap machine?
On the PTM-3000 Series, the spindle turns at 40 RPM with the Propipe H23 power pack. On the PTM-5000 Series, it turns at 25 RPM with the Propipe PPP-5000 power pack. Both use a hydraulic motor with a chain drive. The PTM-1000 uses the optional PPM-1000 air motor (0.6 HP, 150 rpm).
Ratings, Materials and Standards
What pressure and temperature can a hot tap machine handle?
The PTM-1000 and PTM-2000 Series are rated for a maximum working pressure of 1,480 psi (100 bar) at 100°F (38°C), intermittent service from −20°F (−29°C) to 700°F (371°C) at 700 psi (48 bar), and continuous service at 350°F (177°C) at 1,025 psi (70 bar). The PTM-3000 and PTM-5000 Series have a maximum pressure rating of 1,480 psi (100 bar). For higher pressure or temperature requirements, consult the factory.
What is the maximum wall thickness a hot tap machine can cut?
PTM machines can cut up to 3″ wall thickness in mild steel.
Can you hot tap stainless steel or other materials?
Yes. PTM machines are able to cut stainless steel, API grade pipe (Gr. B and X80) and concrete. Capacities are stated for mild steel and may be reduced when operating on other materials.
What standards do hot tap machines meet?
The PTM-1000 and PTM-2000 Series meet NACE Standard and CE, and use sulfide stress cracking resistant metallic material for oilfield equipment.
Plugs and Compatibility
Can a hot tap machine install plugs?
Yes. PTM machines are capable of installing LockSure and flow-through plugs.
Are PTM machines compatible with other brands of equipment?
Yes. PTM machines and their spindles are compatible with most major brands of equipment and tooling.
We Customize to Fit Your Field Conditions
For custom specifications, stroke modifications, or special-order configurations, we’re here to help. Whether you require non-standard mounting, extended boring capacity, or tailored hydraulic integration, our engineering team can adapt PTM systems to meet your exact operational needs. Contact us directly to discuss your project requirements, and we’ll work with you to deliver a solution that aligns with your technical standards and field conditions.
